Capacity/量程

    L

    L1

    A

    H

  2-ΦE

    1～3T

   196

   130

   80

   30

    25

    5～8T

   196

   130

   80

   40

    25

   10～15T

   260

   170

   100

   45

    40

     20T

   260

   170

   100

   50

    40

     30T

   320

   200

   120

   55

    50

     50T

   360

   230

   120

   65

    60

    100T

   570

   360

   230

   85

    96

Model                      型号

TQ01

Capacity                   量程

0～100T

Rated Output               输出灵敏度

2.0±0.005Mv/V

Zero Balance               零点平衡

±1%F.S

Creep after 30 minutes     蠕变

±0.03%F.S

Nonlinearity               非线性

±0.03%F.S

Hysteresis                 滞后

±0.03%F.S

Repeatability              重复性

±0.03%F.S

Temperature effect onoutput 灵敏度温漂

≤0.002%F.S/℃

Temperature effect on zero  零点温漂

≤0.002%F.S/℃

Safe Temperature Range      工作温度范围

-10℃～+70℃

Temperature Compensated     温度补偿范围

-10℃～+40℃

  Safe Overload               安全载荷

150%F.S

Input Impedance            输入阻抗

405Ω±20 Ω

Output Impedance           输出阻抗

350Ω±3 Ω

Insulation Resisance       绝缘阻抗

≥5000 MΩ（50VDC）

Rated Excitation           推荐激励电压

5～15VDC

  Amplifier power supply     变送器供电

24VDC

The output of the amplifier 变送输出

4～20mA或0～10VDC

Protection grade            防护等级

IP66

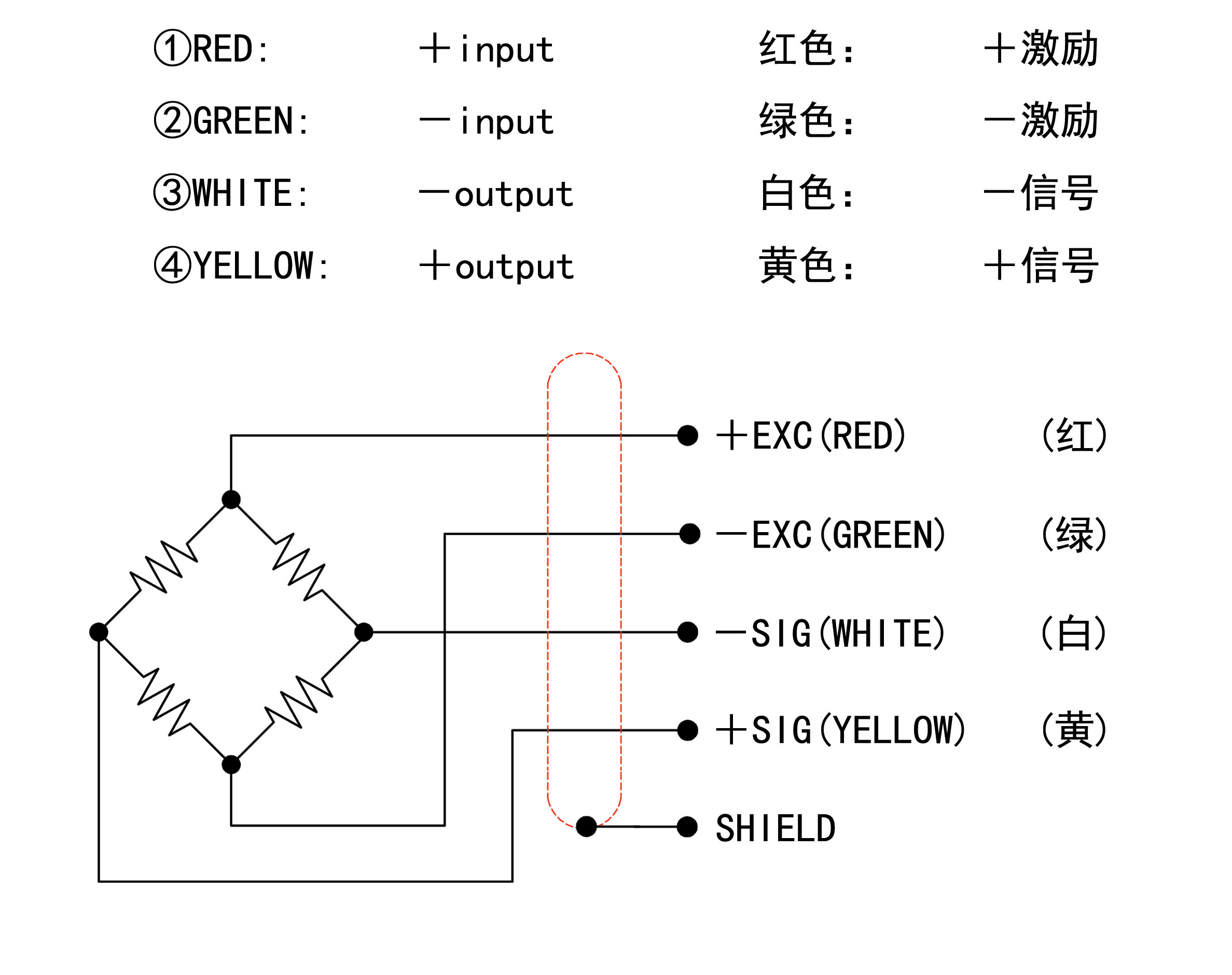

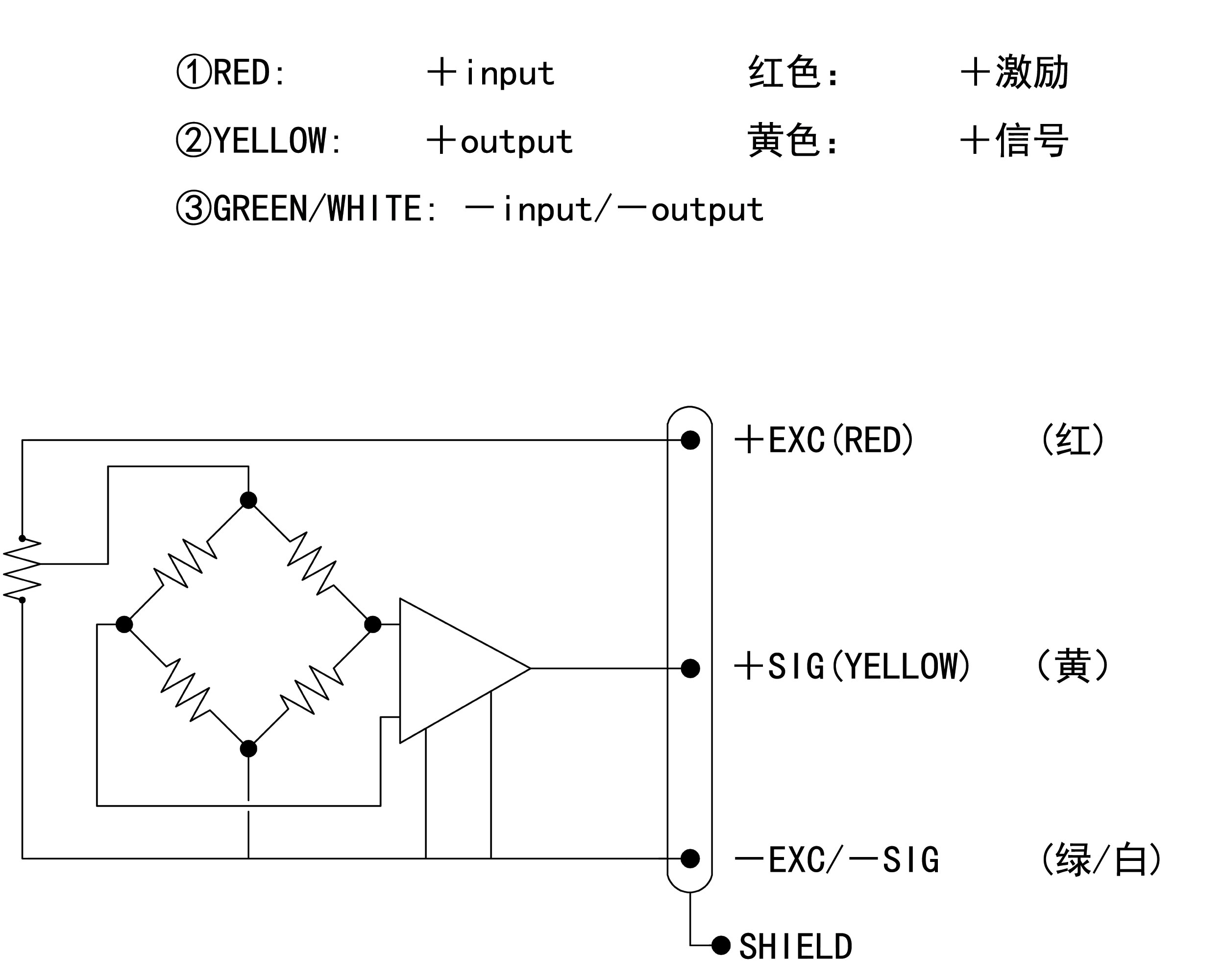

  Cable Color code           导线颜色

Red(+E）Green(-E） Yellow(+S）White（-S）
